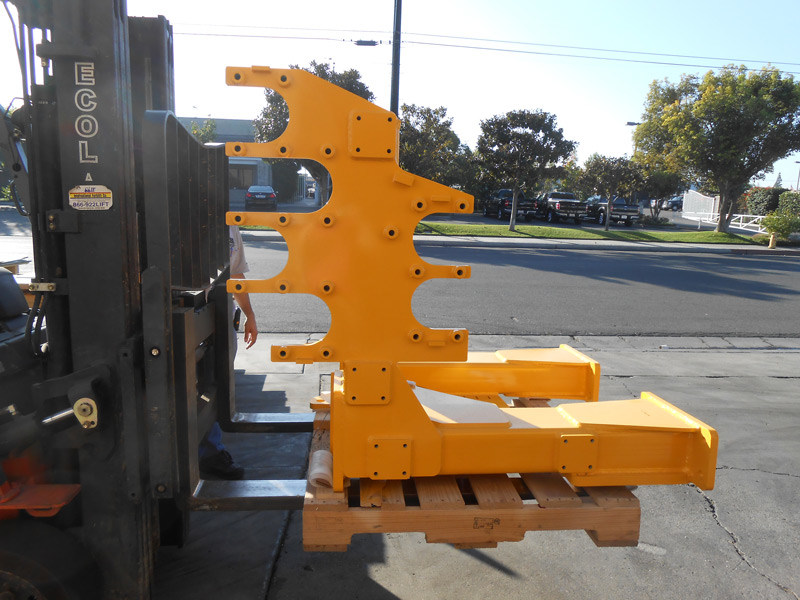

Hangoff brackets are used in the oil and natural gas industry to handle routing of cables onto and off of ocean drilling rigs. They are bulky, heavy, and no match for a veteran sheet metal fabricator that can trace its roots to 1870. We use a combination of laser (Mitsubishi 3015LVplus-40CFX 4,000 watt), water jet (Flow I-6012 with an integrated flying bridge), and band saw (Marvel 2125PC) cutting on A500 carbon steel structural tubing and A633 Grade C structural steel plates. Tubing dimension ranges include 10″ x 6″ x 1/2″ thick, 8″ x 6″ x 1/2″ thick, 6″ x 6″ x 1/2″ thick, with plate thicknesses of 1.75″, 1.25″, 1″, 7/8″, 3/4″, 1/2″, and 3/8″. Our CNC HAAS vertical mill handled all machining of components, which were then assembled by our AWS certified (D1.1) welding staff using a gas metal arc MIG welder with Flexcore wire and custom welding fixtures and later Magnetic Particle Inspected. All individual components were examined by a FaroArm CMM, which allows easy verification of product quality by performing 3D inspections, tool certifications, CAD comparison, dimensional analysis, reverse engineering, and more. These large brackets – 60″ x 54″ x 50″ and weighing approximately 1,450 lbs. – were manufactured to tight specifications of ±0.010″, sandblasted, and painted. ISO 9001:2008 certified, we follow 2D CAD drawings , 3D CAD models and customer specifications to produce several of these brackets in only six to eight weeks for delivery to our domestic customer.

We are a full service sheet metal fabrication company for which no job is too large or too small. Contact ABC Sheet Metal now for further information.

Fabricated Steel Hangoff Bracket Highlights

Product Name Hangoff Bracket
Product Description Industrial bracket used to handle routing of cables onto and off of ocean drilling rigs. Used in the oil and natural gas industry
Capabilities Applied / Processes
Laser Cutting
Waterjet Cutting
Bandsaw Cutting
MIG Welding
Equipment Used to Manufacture Part
Mitsubishi 3015LVplus-40CFX 4000 Watt Laser
Flow I-6012 Waterjet
Marvel 2125PC Band Saw
HAAS Vertical Mill
MIG Welder (GMAW) with Flexcore Wire (FCAW)
Faro Arm Inspection
Custom Weld Fixtures
Overall Part Dimensions 60" x 54" x 50"
Estimated Weight: 1450 lbs.
Tightest Tolerances ± 0.010"
Material Used A500 Tubing:
10" x 6" x 1/2" thick, 8" x 6" x 1/2" thick, 6" x 6" x 1/2" thick

A633 Grade C Plates:
Thickness of : 1.75", 1.25", 1", 7/8", 3/4", 1/2", 3/8"
Material Finish Sandblasted
Painted to Customer Specs
In Process Testing / Inspection Performed Individual Components Verified by Faro Arm Inspection
Industry for Use Oil and Natural Gas
Volume Low Production
Delivery / Turnaround Time 6 – 8 Weeks
Delivery Location USA
Standards Met
Customer Specifications
2D CAD Drawing
American Welding Society (AWS) D1.1
Magnetic Particle Inspection (MPI)
ISO 9001:2008
